Description

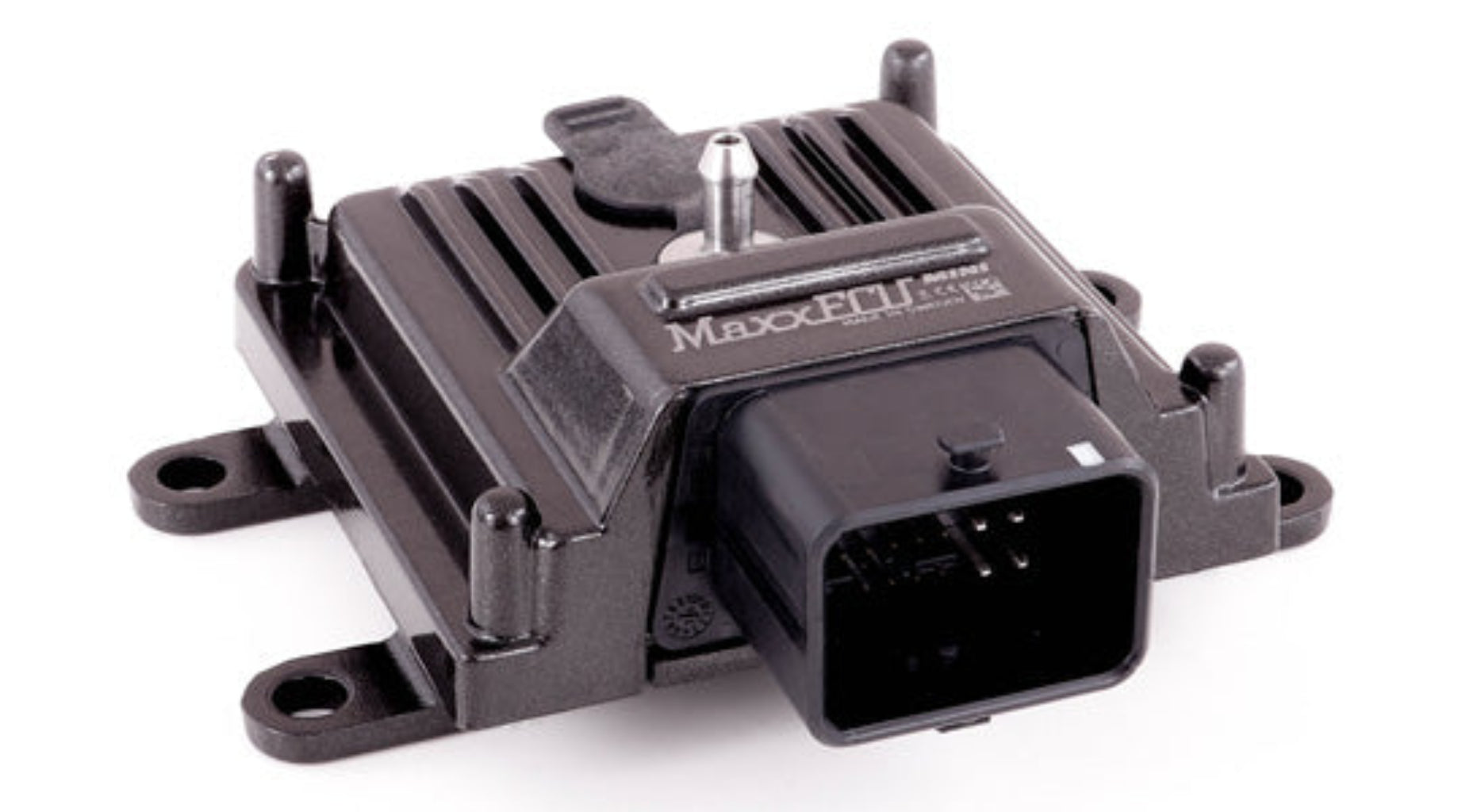

MaxxECU MINI STANDARD (ECU, harness and accessories)
MaxxECU MINI – Advanced Entry-Level Engine Management System
The MaxxECU MINI is a high-performance engine control system designed for up to 4 sequential cylinders or 8 cylinders in wasted spark. It is not only compact and lightweight, but it also delivers fast and precise tuning thanks to its built-in 3-bar MAP sensor. Moreover, with the intuitive MTune PC software, calibration becomes both easier and more efficient.
Key Features
MaxxECU MINI is packed with features that enhance both performance and usability. These include:
- A waterproof aluminum case, ensuring durability in extreme conditions.
- Boost control with triple-stage functionality for maximum tuning flexibility.
- Traction control and launch control, improving handling and acceleration.
- Internal logging with an advanced warning system to protect your engine.
- Four injector outputs and four ignition outputs, offering compatibility with a range of setups.
- CAN bus support, allowing seamless integration with other systems.
- Additional inputs and outputs, making it highly customizable for different applications.
Engine Compatibility
The MaxxECU MINI is designed to support a wide range of engines, making it extremely versatile. It is compatible with:
- 1-4, 6, and 8-cylinder engines, offering flexibility across multiple platforms.
- Up to 4 cylinders fully sequentially, utilizing a digital input as HOME.
- Up to 8 cylinders in wasted spark, making it ideal for high-performance setups.
- Various OEM and aftermarket trigger setups, including missing-tooth triggers, distributor systems, and multi-tooth patterns.
Inputs and Outputs
To ensure seamless integration, MaxxECU MINI includes a variety of inputs and outputs. These allow for better control, improved data collection, and a more efficient tuning process.
- Sensor Inputs: Supports intake air temperature, coolant temperature, and throttle position sensors for real-time monitoring.
- Boost Monitoring: Equipped with a built-in 400kPa MAP sensor, capable of measuring up to 43.5 psi of boost.
- Injector and Ignition Outputs: Features four high-impedance injector outputs and four ignition outputs, perfect for ignition modules, CDI units, or coils.
- Extra Outputs for Custom Features: Includes four general-purpose outputs, which can control fuel pumps, fans, solenoids, nitrous, and warning lights.
- Additional Sensor Inputs: Comes with two digital inputs and two 0-5V analog inputs, allowing for extra sensors such as fuel or oil pressure monitoring.
Technical Specifications
The MaxxECU MINI is not just feature-packed—it is also built with top-tier technical specifications that ensure lightning-fast performance and precision control.
- ARM Cortex-M3 processor, running at 120MHz for rapid data processing.
- Internal 8MB logging memory, capable of sampling at up to 1000Hz.
- Fuel and ignition calculations updated 2000 times per second, ensuring real-time responsiveness.
- Compact and lightweight design, measuring 85x120x43mm and weighing only 245g.
- USB tuning support, allowing seamless communication with MTune software for instant adjustments.
Tuning & Software Capabilities
With the MTune software, tuning has never been more efficient. Not only does it offer real-time adjustments, but it also includes 2D and 3D tuning maps that provide an easy-to-navigate interface. Additional capabilities include:
- Local autotune, making calibration faster and more precise.
- Integrated shift-cut and rolling launch control, enhancing performance during gear shifts.
- Anti-lag support, available via solenoid or electronic throttle control.
- Advanced traction control, optimizing power delivery to maximize grip.
- Full support for VANOS/VVTi systems, nitrous control, and boost level switching, making it ideal for high-performance builds.
Advanced Functionality
Beyond basic tuning, MaxxECU MINI provides extensive engine protection and performance optimization features. These help ensure the engine operates safely and efficiently under extreme conditions.
- Engine Protections: Includes EGT-based fuel corrections, lean power cut, and rev limiters, preventing damage due to overheating or lean conditions.
- Flex-Fuel Tuning: Automatically adjusts fuel and ignition maps based on ethanol content.
- Sequential Gearbox Control: Supports clutchless shifting with configurable settings.
- CAN Bus Integration: Allows for seamless connectivity with OEM protocols, OBDII diagnostics, and additional CAN-based expansion modules.
Trigger & CAM Sensor Support
MaxxECU MINI is compatible with a wide range of trigger setups, allowing easy adaptation to various engines. It supports:
- Standard missing-tooth patterns such as 60-2, 36-1, and GM LS 24x.
- OEM triggers from manufacturers like Honda, Nissan, Subaru, Mitsubishi, and Porsche.
- Advanced CAM signal setups, including single-pulse, missing-tooth, and manufacturer-specific designs.
Why Choose MaxxECU MINI?
The MaxxECU MINI is the perfect solution for those seeking a powerful yet compact engine management system. It is designed to be:
- Highly versatile, supporting a wide range of engine types and configurations.
- Fast and responsive, with real-time tuning capabilities.
- Customizable, offering multiple inputs and outputs for unique setups.
- User-friendly, featuring an easy-to-use software interface.
- Packed with performance-enhancing features, including launch control, anti-lag, and traction control.
Upgrade to MaxxECU MINI Today!
Whether you’re looking for better tuning control, improved performance, or advanced customization, the MaxxECU MINI delivers. Its combination of cutting-edge technology, seamless tuning, and high compatibility makes it a top choice for performance enthusiasts. Take your build to the next level—upgrade to MaxxECU MINI today!
