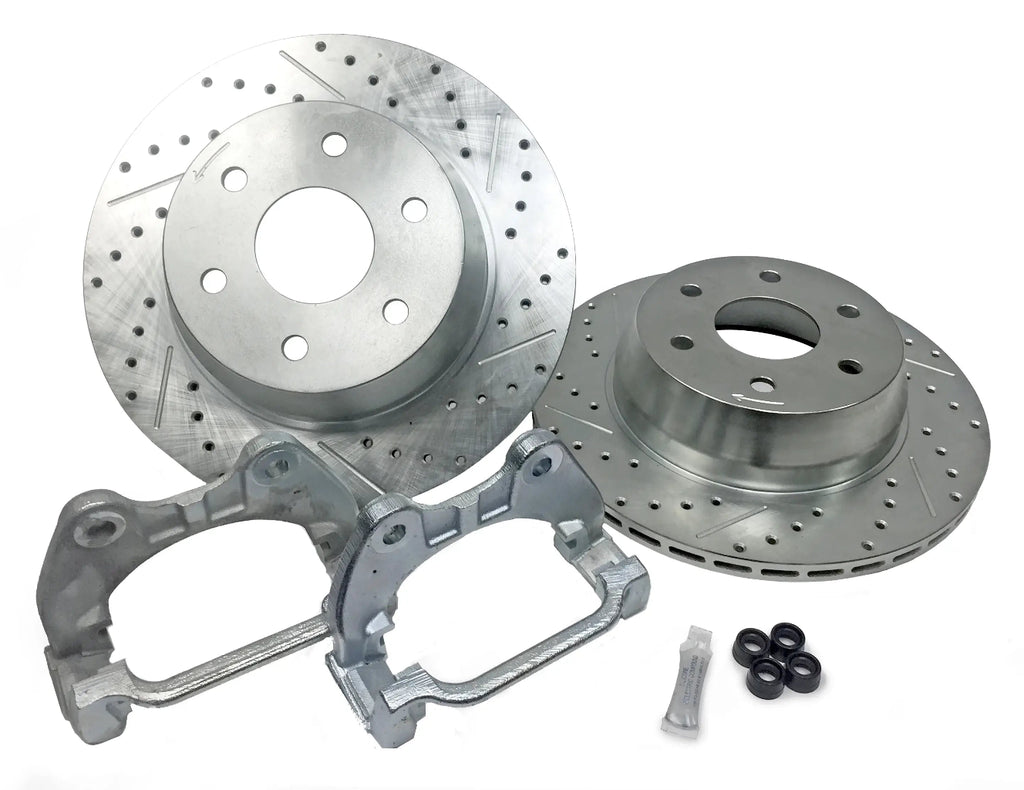

Baer BIG Claw Performance Rotor Upgrade – Enhanced Braking for GM 1500 Trucks & SUVs
The Baer BIG Claw Performance Rotor Upgrade is a simple, bolt-on kit designed to improve braking performance at a fraction of the cost of a big brake kit.
This upgrade includes a pair of larger-than-stock diameter rotors and caliper relocation brackets for improved brake torque and consistent performance. The purpose-cast rotors feature increased material in the fire path and a curved vane design to improve heat transfer and cooling, reducing brake fade and delivering superior braking power.
Qualifies for Free Shipping
The BIG Claw rotors also feature a slot, drilled, and zinc-plated finish, providing a striking visual impact, especially when paired with large open-center wheels. Note: Due to the variety of wheel designs, Baer cannot guarantee fitment into every wheel.
Key Features:
-
Larger-than-Stock Rotor: Increases brake torque and reduces stopping distance. Verify fitment with the provided template (including spare tire/wheel).
-
Cross-Drilled & Slotted: Designed to allow dust and gases to escape, ensuring consistent pedal feel during braking.
-
Purpose-Cast Rotor: One-piece rotor with increased mass in the friction area, improving heat absorption and reducing brake fade.
-
Directionally Vaned Rotor: Acts like a centrifugal pump, maximizing airflow for better heat dissipation and cooling.
-
Direct Bolt-On Installation: Easy installation with no need for brake bleeding. Simply bolt it on and go.
-
OE Caliper Relocation Bracket: Includes all necessary hardware to accommodate the larger rotors.
-
Slot, Drilled & Zinc-Plated Finish: Provides a brilliant visual impact behind large open wheels, enhancing appearance and performance.
Specifications:
-
Applications:
-
GM 1500 SUV (2000-2018)
-
GM 1500 Truck (1999-2018)
-
-
Axle: Rear
-
Material: Cast Iron
-
Construction: Full Cast
-
Rotor Surface: Directional
-
Nominal Thickness: 0.799 in
-
Outside Diameter: 14.000 in
-
Center Hole Diameter: 3.095 in
-
Mounting Bolt Hole Circle Diameter: 139.7 mm
-
Stud/Lug Hole Circle Diameter: 6x139.7 mm
-
Stud/Lug Hole Quantity: 6
-
Minimum Wheel Diameter: 18 inches (verify with template)
-
Discard Thickness: 17.75 mm
-
Overall Height: 84.68 mm
-
Surface Type: Slotted, Drilled & Zinc-Plated
-
ABS Tone Ring: No
-
Emission Code: 6
-
Grade Type: Performance
System Notes:
-
Fitment Check: Verify fitment of your spare tire/wheel.
