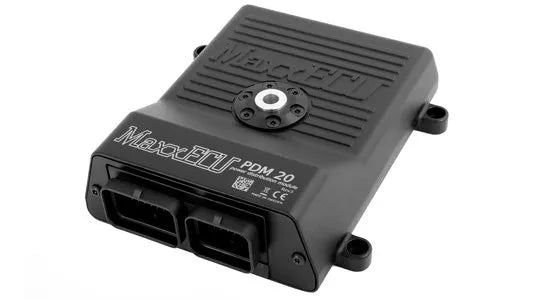

MaxxECU PDM20 - Advanced Power Distribution Module for MaxxECU Systems
The MaxxECU PDM20 is a cutting-edge Power Distribution Module (PDM) designed to seamlessly integrate with MaxxECU units. This high-performance module replaces traditional fuses and relays, offering advanced control and monitoring of power distribution in automotive systems. Engineered for reliability and flexibility, the PDM20 is perfect for enthusiasts and professionals looking to optimize their vehicle control systems for motorsports, high-performance tuning, or custom builds.
With a temperature range of -40°C to +125°C, the MaxxECU PDM20 is built to withstand extreme conditions. It offers robust reverse polarity protection, ensuring the system remains safe and functional regardless of electrical mishaps. The 32-bit ARM Cortex-M3 CPU provides fast processing power to handle even the most demanding vehicle control tasks.
Key Features:
General Specifications:
- Temperature Range: -40°C to +125°C, perfect for extreme conditions
- Operating Voltage: 6-22V, compatible with most automotive electrical systems
- Dimensions: 132x140x42mm (excluding protruding connectors)
- Connectors: 1x 34-pin and 1x 26-pin Superseal connectors for easy, secure wiring
- Battery Connection: M6 screw for secure battery connection
- PC Communication: CAN-bus communication for setup and data transfer with MaxxECU MTune software
Inputs and Outputs:
- 7 Digital/Analog Inputs (0-24V) for versatile signal handling
- Software-selectable 12V pull-up for enhanced flexibility
- CAN keypad support (4, 6, 8, or 12 keys)
- 230A Maximum Current Throughput, supporting high-demand setups
- 6 Outputs with H-bridge drivers, ideal for motors, solenoids, or other high-power devices
- PWM-capable outputs for precise control over vehicle components
- Overcurrent Protection via emulated fuse characteristics and hardware backup
- Voltage and current measuring for accurate performance monitoring
- Monitored +5V sensor supply output for consistent sensor operation
- Outputs can be paired to increase current capacity when needed
Advanced MaxxECU Functions:
- Launch Control: Up to three stages for optimized launch performance
- Rolling Launch & Anti-Lag: Using solenoids or E-Throttle for seamless acceleration
- Traction Control: Advanced control for high-performance vehicles
- Power Management: Efficient energy distribution for custom setups
- Shift-Cut & Overrun Fuel Cut: Ensures smooth gear shifting and fuel management
- Lambda Control: Closed-loop air/fuel ratio adjustments for optimal engine performance
- Nitrous Control: Customizable settings for nitrous oxide systems
- Boost Control: Closed/open loop boost control with extra compensation tables
- E-Throttle Support: Full support for electronic throttle control systems
- VANOS/VVTi Support: Advanced variable valve timing control for increased engine efficiency
- Logging: Internal up to 1000Hz; PC logging at 20Hz for detailed performance tracking
- Error Diagnostics: Built-in diagnostics for efficient error handling and troubleshooting
Additional Advanced Features:
- Speed Limiters: Customizable speed restrictions for enhanced safety
- Individual Fuel Correction per Cylinder: Fine-tune fuel delivery for optimal engine performance
- Injector Staging: Precise control of fuel injectors for power and efficiency
- Virtual Fuel Tank/Fuel Consumption: Track fuel usage and optimize fuel management
- Closed-loop Anti-Stall: Ensures smooth engine idle under all conditions
- Clutch Slip Control: Control clutch slip using user-defined tables for better traction management
- CAN Integration: Advanced CAN bus for communication with external electronics and OEM systems (OBDII, OEM vehicle buttons)
- Timers & Distance Counters: Measure performance and monitor progress during use
- Built-in Trigger Oscilloscope: Real-time signal analysis for troubleshooting and tuning
- Flexible Load/Speed Axis Selection: Customize your vehicle's performance based on specific driving conditions
Power and Efficiency:
- Energy-saving Mode: Low power consumption, drawing only 0.004A in standby
- Current Protection: Adjustable levels with automatic restart and soft-start options
- CAN Protocol Support: Full integration with OEM protocols, OBDII, and CAN modules
Why Choose the MaxxECU PDM20?
The MaxxECU PDM20 is the perfect Power Distribution Module for anyone looking to upgrade their vehicle's electrical system with advanced control and monitoring.
Designed for motorsports and high-performance vehicles, the PDM20 allows for precise control over critical systems such as launch control, boost management, traction control, and fuel delivery. With its comprehensive set of features, overcurrent protection, and built-in diagnostics, the PDM20 offers unmatched performance, reliability, and versatility for custom automotive setups.
Whether you're building a race car, a custom off-road vehicle, or a street-performance machine, the MaxxECU PDM20 ensures your system remains efficient and fully optimized.
